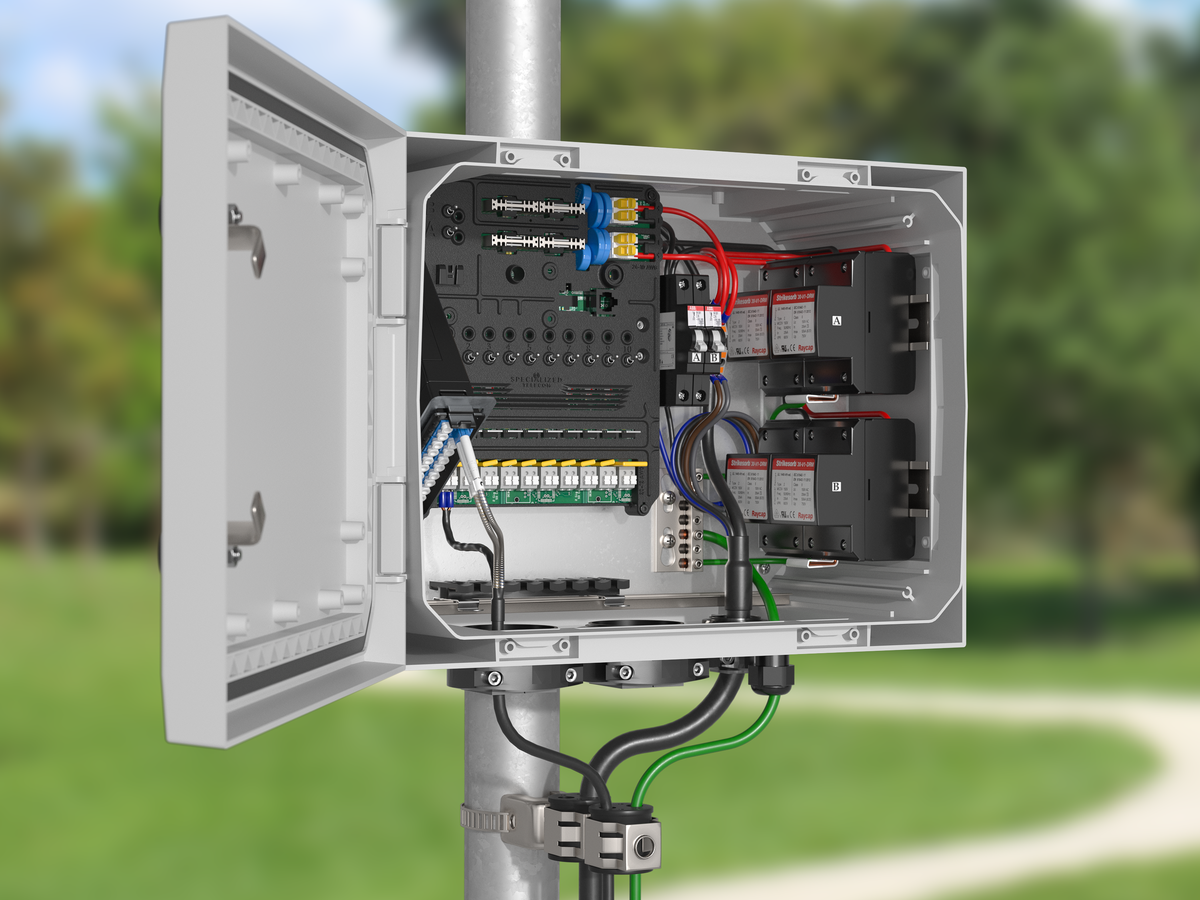

Distribution Enclosure for Hybrid FTTA System
$855.00

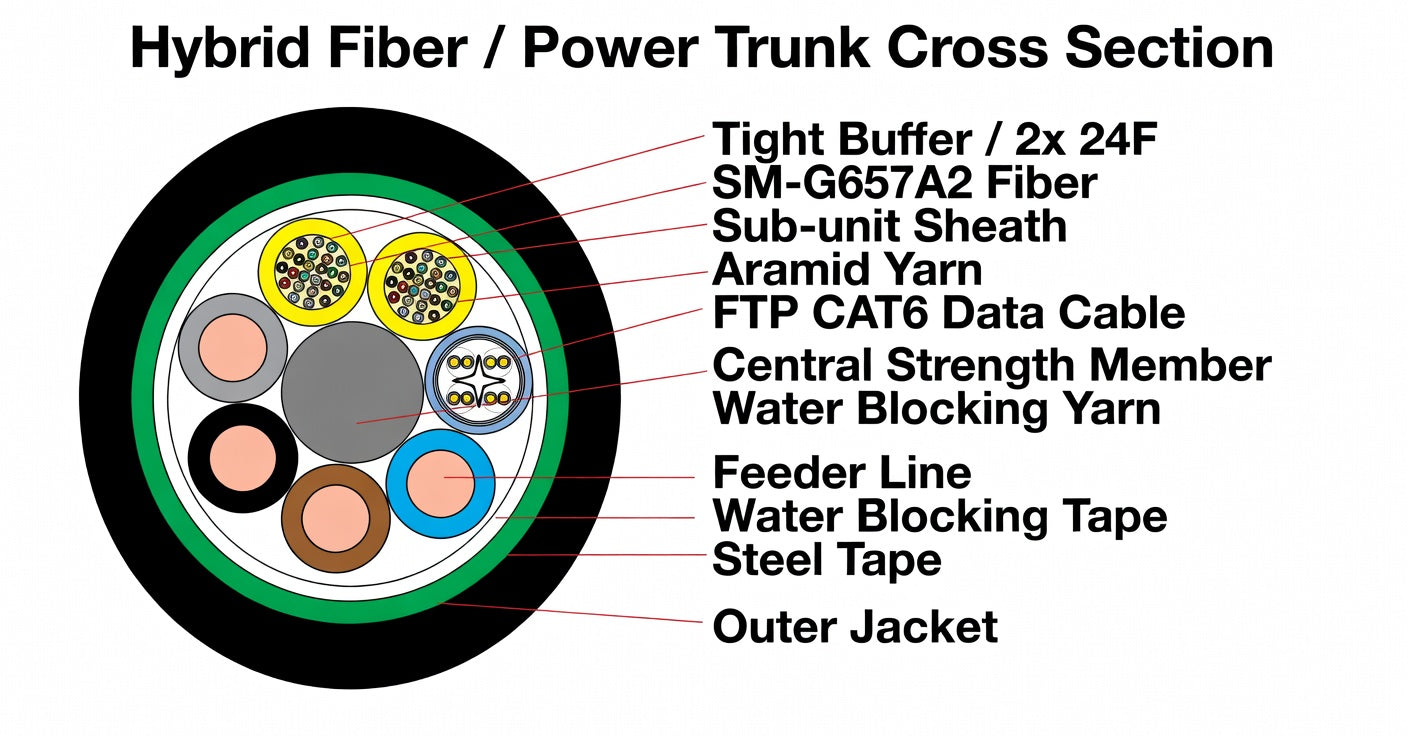

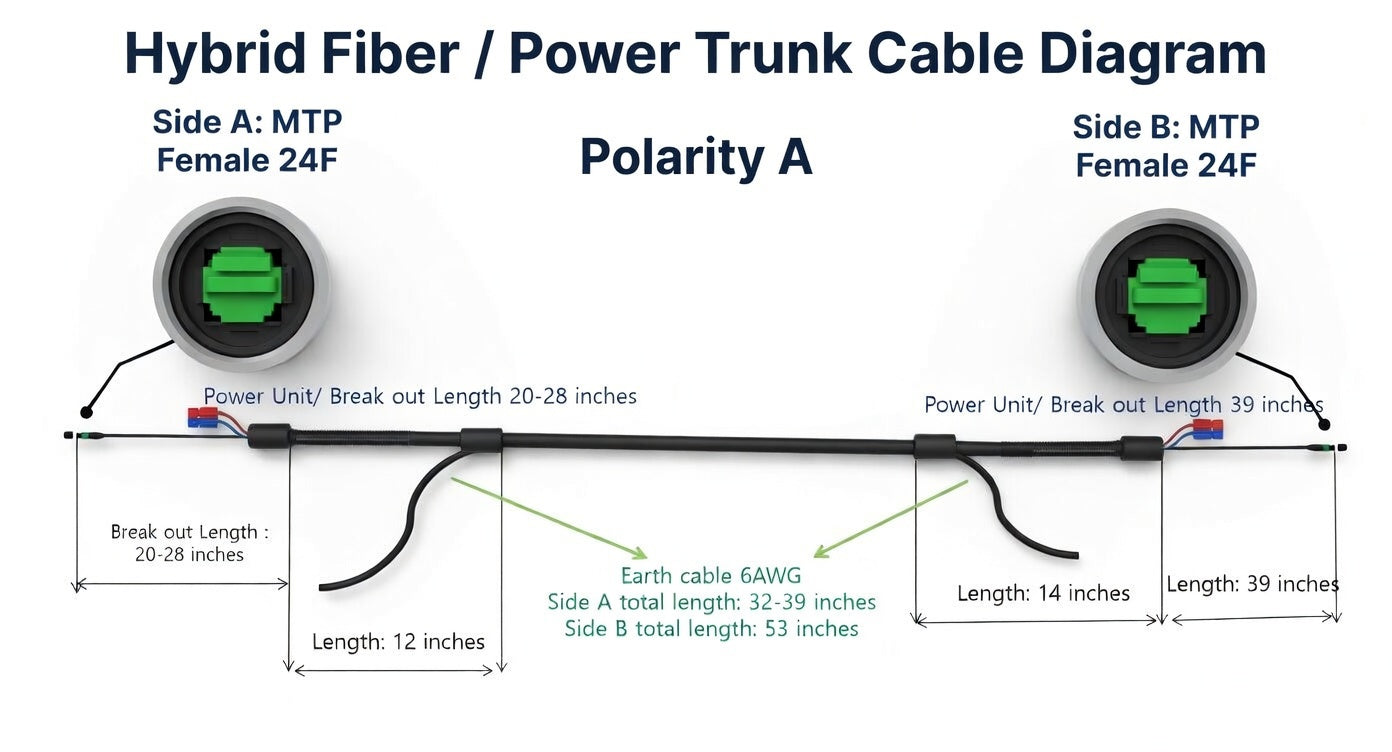

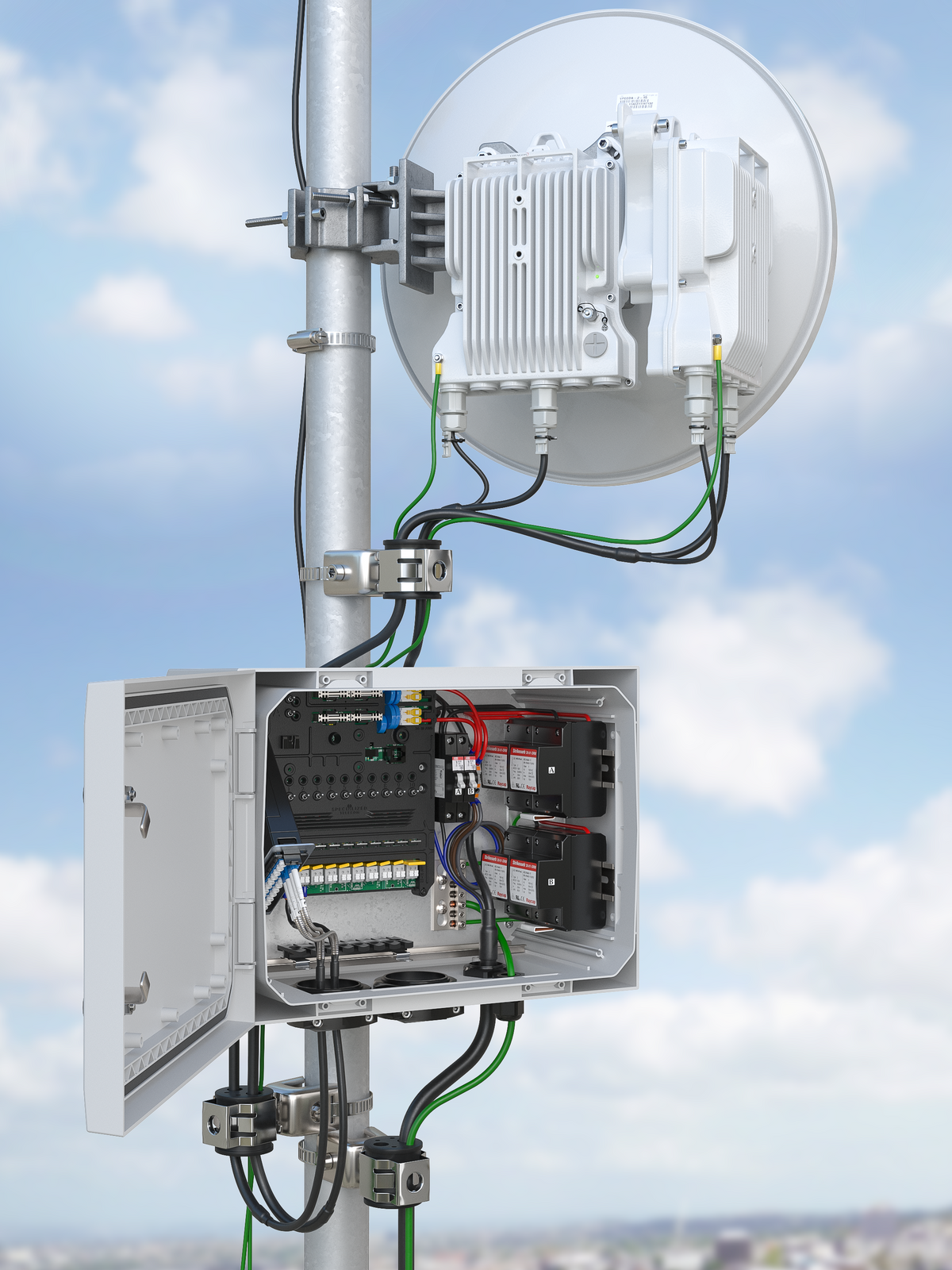

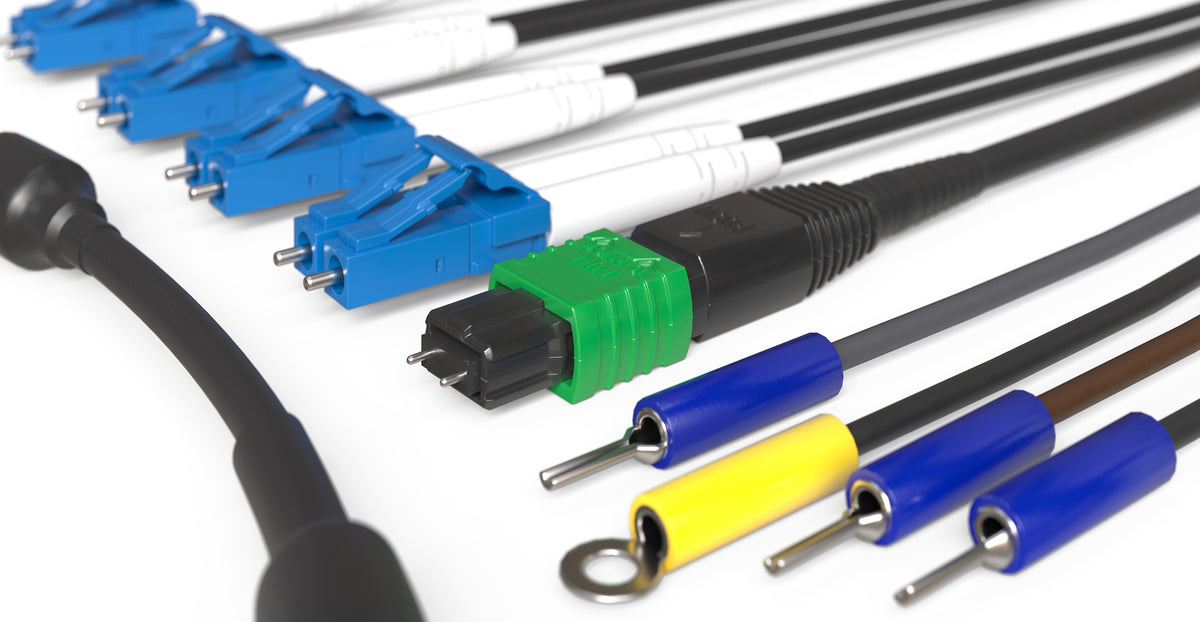

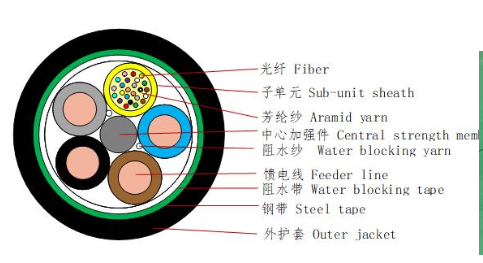

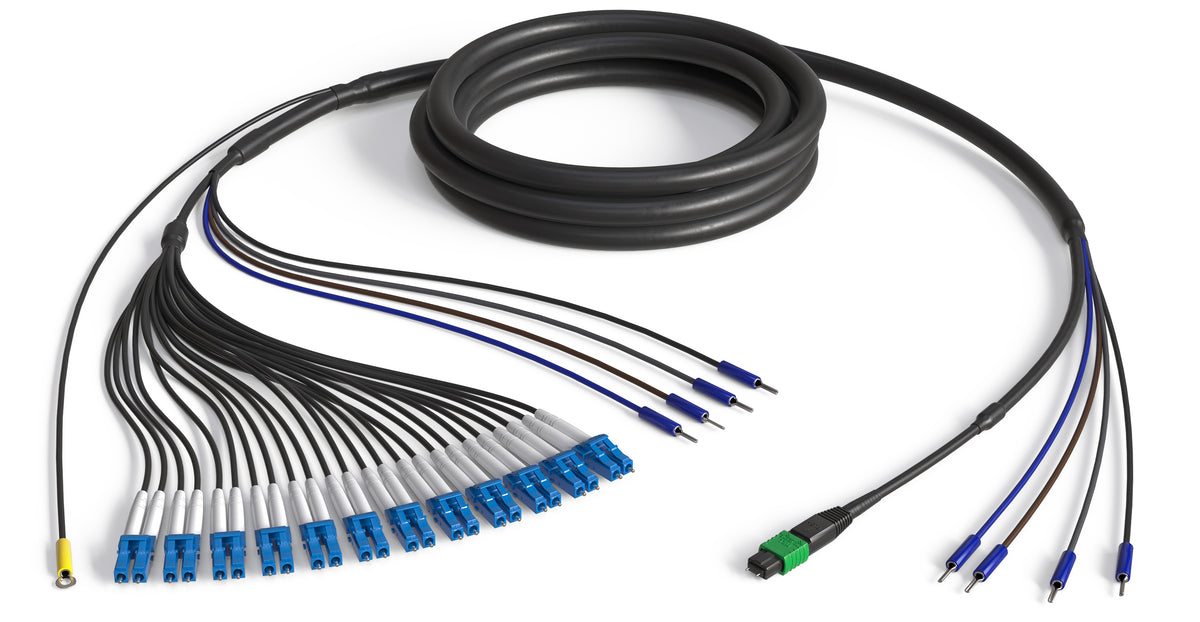

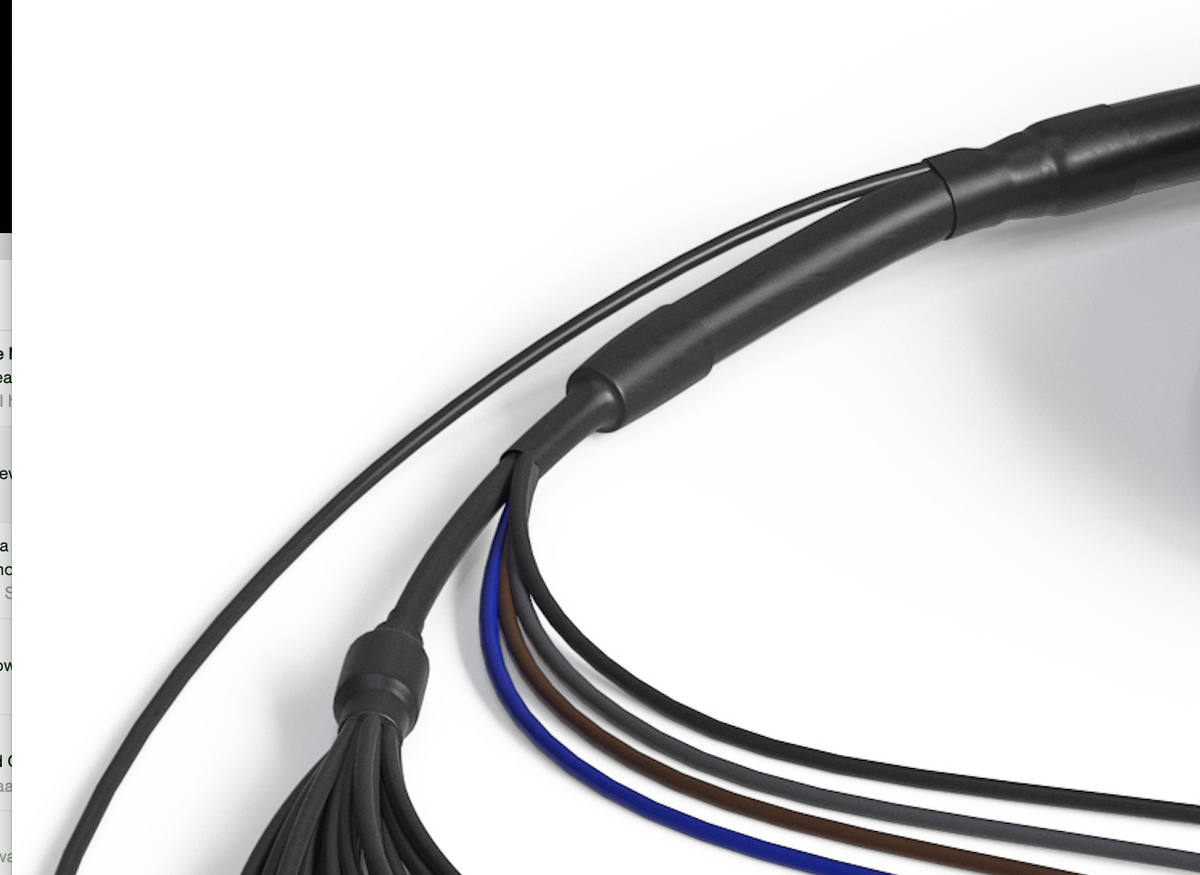

The Specialized Hybrid Enclosure provides an option for distributing both data and power on tower tops and rooftops. One hybrid box can support up to 10 DC-powered radios in a variety of configurations. The Hybrid Trunk Cable is terminated in the Hybrid Distribution Enclosure.
Features and Benefits
- Fiber and power distribution and management
- OVP integration options
- Pre-connectorized and wired
- IP66 rating
- Wall or mast mounting
- High UV Resistance
- Lightweight
Power Distribution Features
- Power distribution for 10 devices with up to 5 amps per output
- Redundant inputs with protection against reverse polarity can accept up to 50amps of -48vdc power
- Output protection for transient events, overcurrent events, inrush current surges and voltage spikes.
- Each input and output have individual mechanical switches and status LEDs
- Each output has an auto-resetting circuit breaker with a maximum current of 5amps but can be programmed to have a lower trigger threshold.

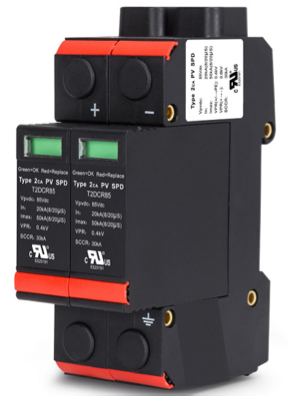

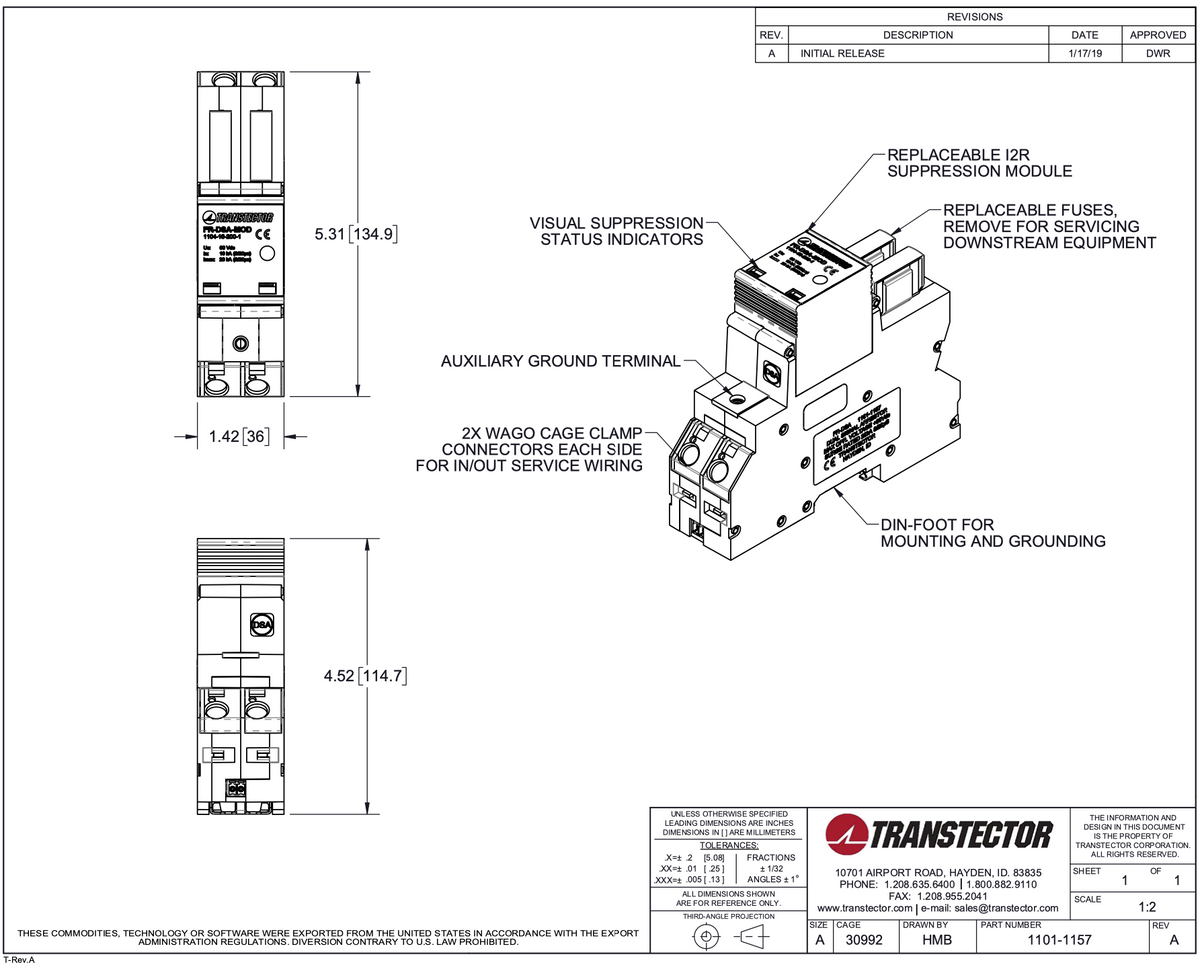

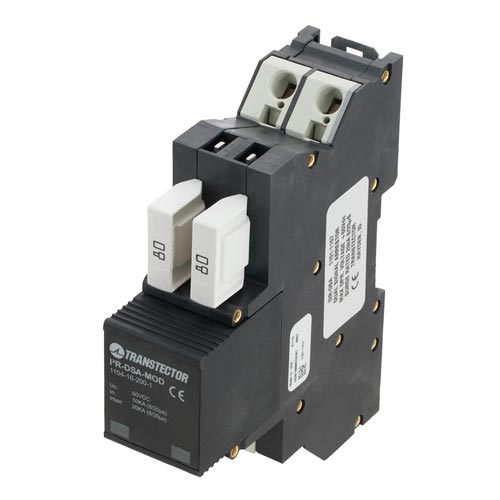

- There are 4 options of Input Lightning or Surge Protection to choose from
Fiber Distribution Features

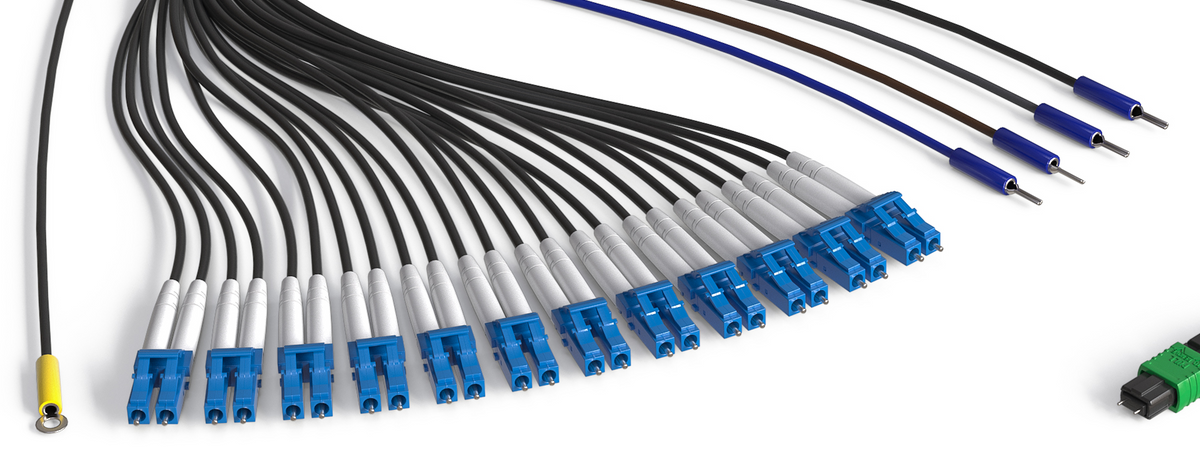

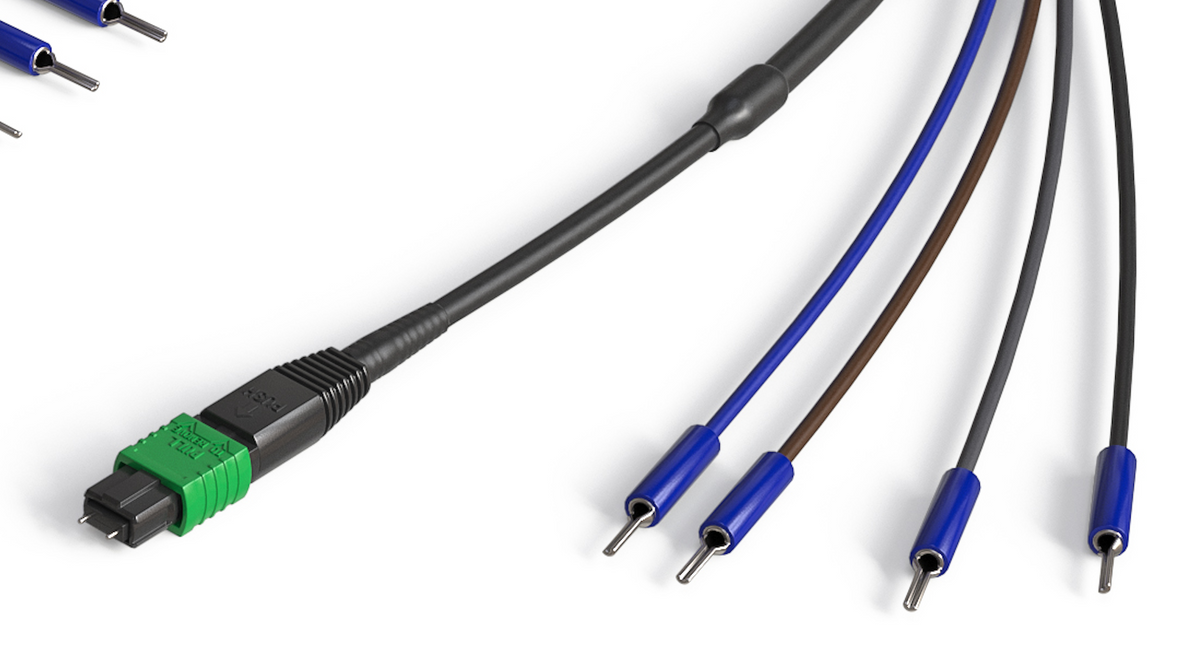

- Integrated 24 fiber cassette that accepts the MTP connector from the Specialized trunk cable
- Room to add an additional cassette or panel in the future if more fiber termination or cross connects are required
Cable Management Features
- Factory installed Icotek Split Cable Glands allow easy pre-terminated cable installation
- Icotek DIN-rail mounted cable strain relief
Enclosure Features

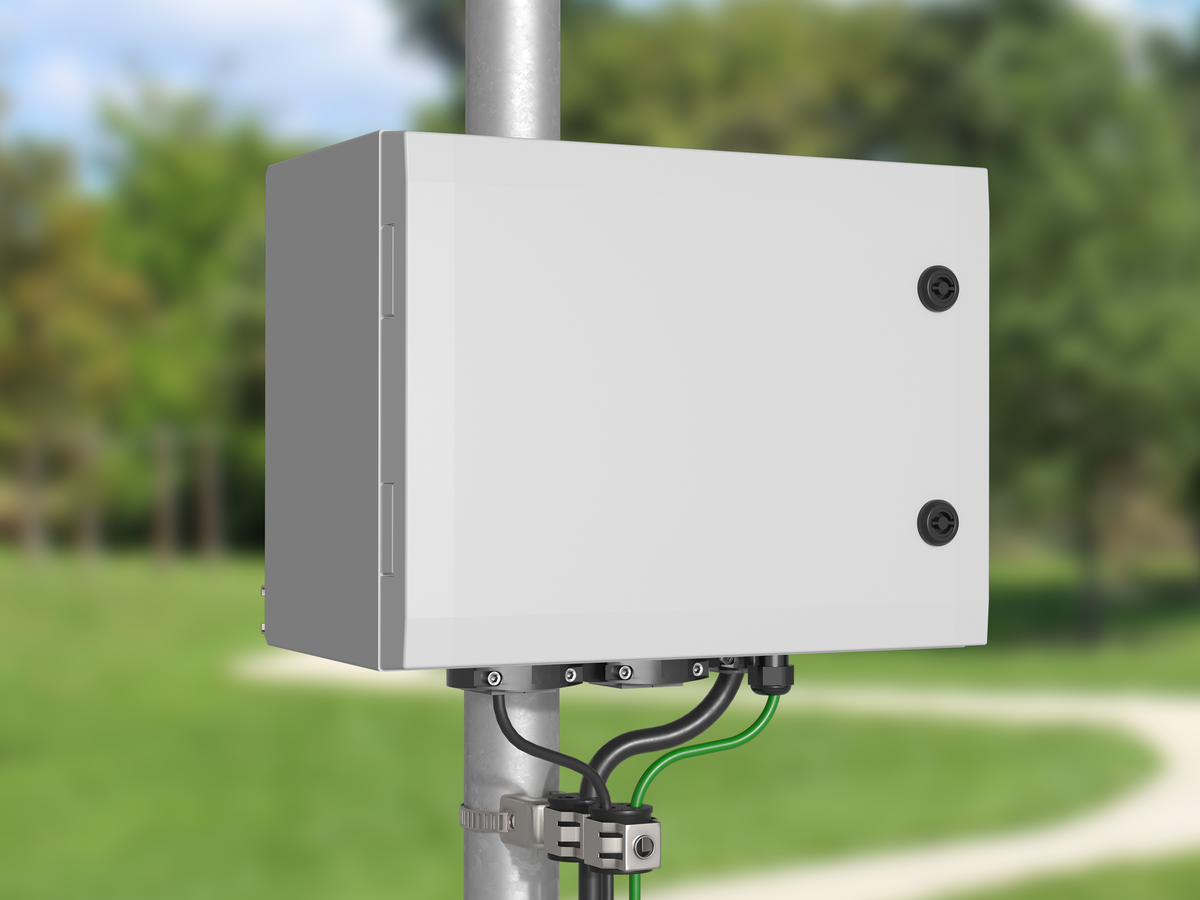

- Cabinet includes both wallmount and pole mount kits
- Stainless steel mounting plate with DIN rails
- 3mm Double bit locks with keys, 2 point locking system
Dimensions in mm | 300 x 400 x 150 (H x W x D) |
Dimensions in inches | 11.81 x 15.75 x 6.22 (H x W x D) |
Material | Polycarbonate |
Color | Light Grey |
Gasket Material | Polyurethane |
Temperature (Short Term) | -40 to 250 °F / -40 to 120 °C |
Temperature (Long Term) | -40 to 175 °F / -40 to 80 °C |
Ratings: | |
Ingress / Impact Protection | IP66 / IK10 |
Electrical Insulation | Totally Insulated |
UV Resistance | UL 508 |
NEMA Class | NEMA 1, 4, 4x, 12 and 13 |

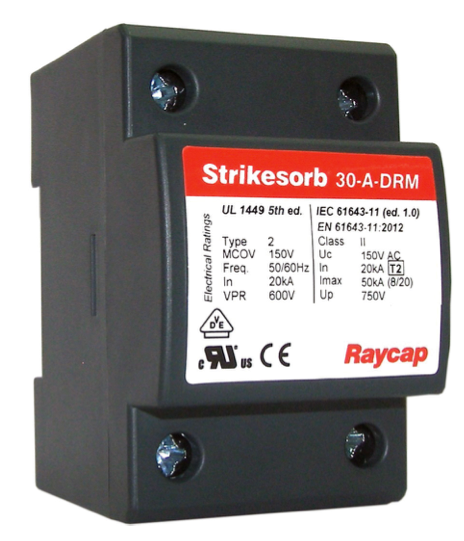

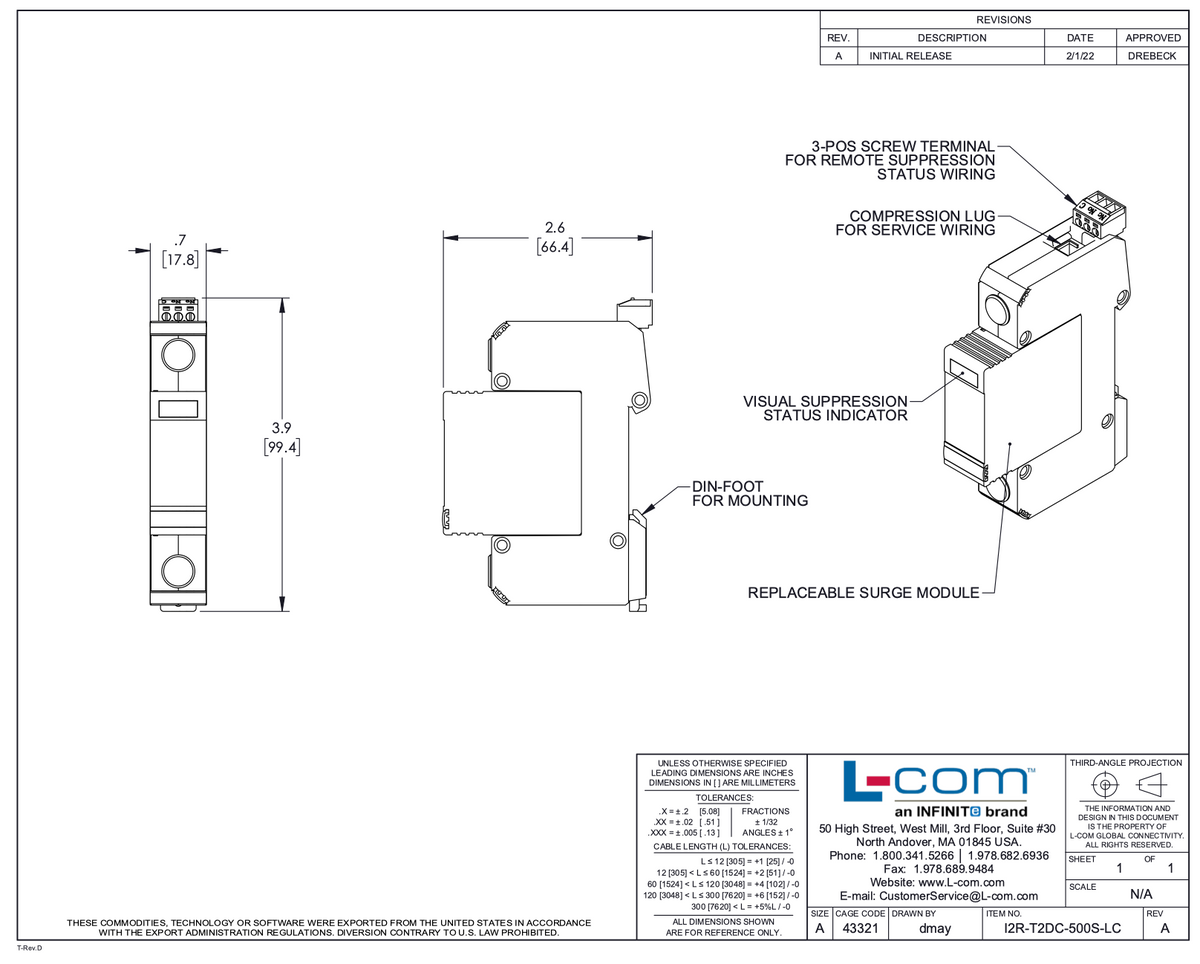

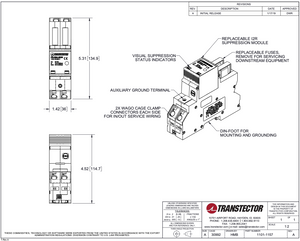

Lightning Protection
We provide a number of options for
